MC-EX-AQ4

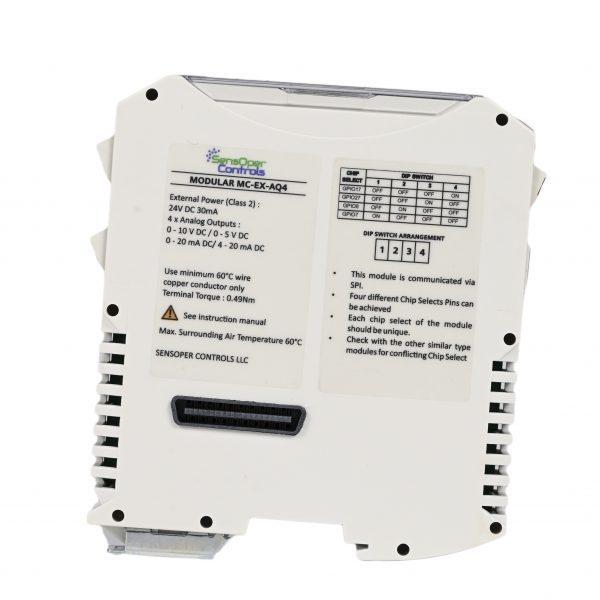

Untitled-6

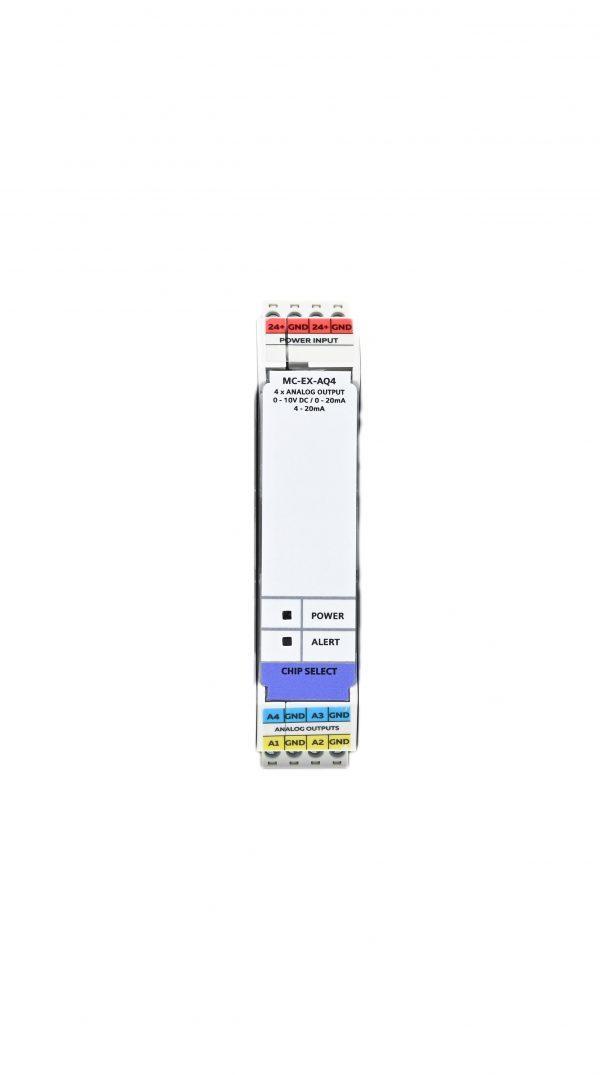

MC-EX-AQ4

  • Expansion Module for read Analog Outputs
  • Integrated Programable chip
  • Connector integrated for expansion
  • Address Configurable  DIP switches
  • On-Chip Diagnosis
  • Voltage and Current Outputs
  • Din Rail Modunting
Compare
Request a Quote

Description

Specifications

  • 13 Bit resolution Monotonic DAC included for Analog Outputs
  • Possible to send 0-10V/0-20mA Analog signals
  • Programable AD74413R chip  via SPI protocol.
  • Integrated DIP switches for chip select
  • Accuracy of ±2 % FSR
  • 24V DC Rated Supply Voltage

Expansion

  • Supports maximum two units for single Bus expansion

Ports & Connections

  • 40 pin board board-to-board connector integrated for expansion
  • Top Hat type Din Rail Mounting
  • 4 x Analog Outputs 0-10V/0-20mA
  • 1 x Input Power

Additional information

Weight 220 g
Dimensions 113.6 × 45 × 99.6 mm
