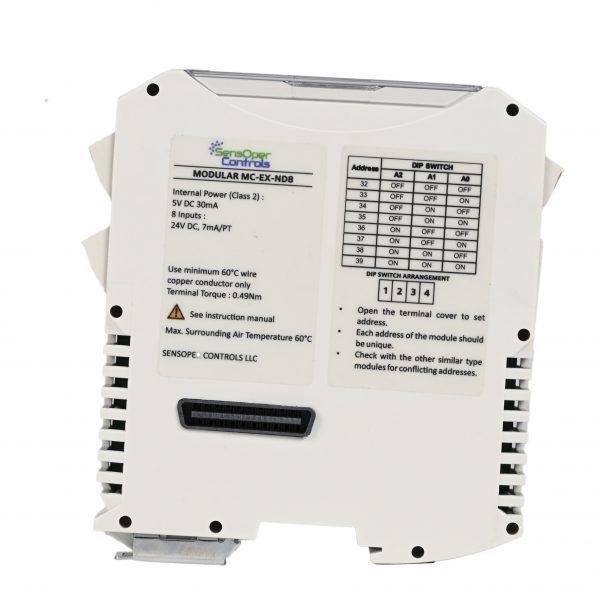

MC-EX-ND8

  • Optically Isolated
  • Reading Digital Inputs
  • Integrated Port Expander
  • Address Configurable function
  • LED Indication
  • High Speed I2C
Compare
Request a Quote

Description

Specifications

  • Integrated MCP23008 chip for port expanding
  • Programming MCP23008 chip via high speed 1.7 MHz I2C interface
  • Possible to read Digital signals
  • Address configuration supports up to 8 addresses with DIP switches
  • Optically Isolated for protection
  • Support for Sink/Source Polarity
  • 24V DC Rated Supply Voltage

Expansion

  • Supports maximum four unites for single Bus expansion

Ports & Connections

  • 40 pin board board-to-board connector integrated for expansion
  • Top Hat type Din Rail Mounting
  • 8 x Digital Inputs 0 – 24V DC
  • 1 x Input Power

Additional information

Weight 220 g
Dimensions 113.6 × 45 × 99.6 mm
