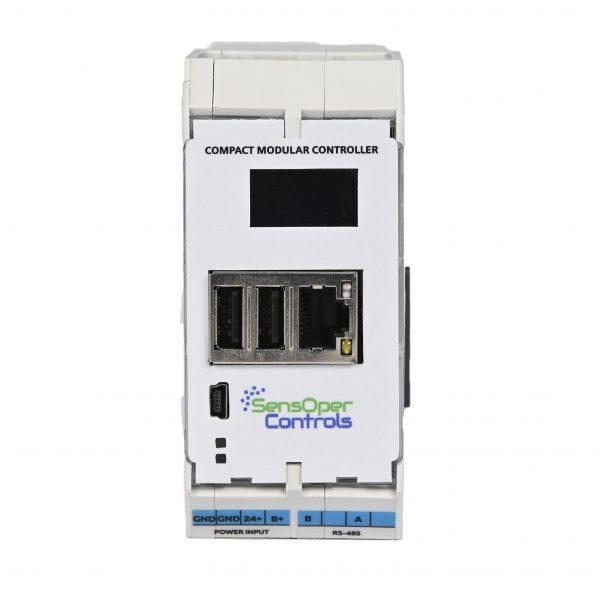

MC-CPU-CM4-Gx

Description

Processing

• Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
• OpenGL ES 3.1, Vulkan 1.0
• Options for 1GB, 2GB, 4GB, or 8GB LPDDR4-3200 SDRAM
• Options for 8GB, 16GB or 32GB eMMC Flash memory
• 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless;
• Bluetooth 5.0, BLE;

 Supported I/O Expansions

• 8 x Digital Input Module
• 4 x Fast Input Module | Counter
• 8 x Transistor Output Module
• 4 x Fast Output Module | PWM | Pulse
• 8 x Analog Inputs 0 – 10V 16bit
• 8 x Analog Inputs 0 – 20mA
• 4 x Analog Output 0 – 10V 13bit
• 4 x Analog Output 0 – 20mA
• CAN Bus expansion
• GSM/LTE Expansion

Ports & Connections

• 1 x Gigabit Ethernet
• 2 x USB Type A Ports
• 1 x microSD
• 1 x RS-485
